SPECIFICATION

600W high-power motor, strong performance, capable of climbing 15-degree slopes

Remote-controlled alarm included

Deluxe seat with adjustable backrest, headrest, and armrests; includes seatbelt (seat is fixed/non-movable)

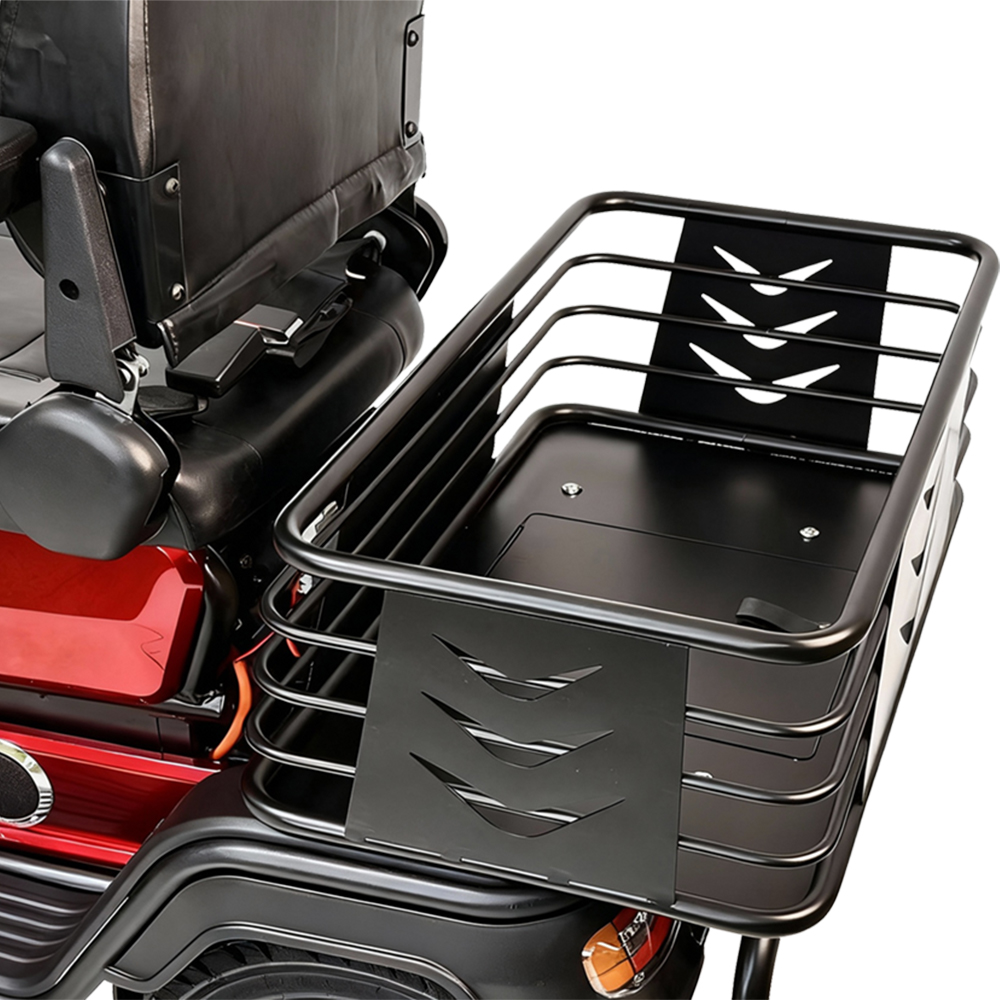

Extra-large cargo basket, convenient for shopping and transporting small goods

Bluetooth MP3 + FM radio for enhanced driving pleasure

Full-body painted plastic components, stylish and elegant appearance

Large front storage basket

Front and rear bumpers

Front drum brake + rear disc brake with electronic braking system for added safety

Front headlight, rear taillight, turn signals, and side reflectors

LCD instrument panel

Integrated fault reporting system; the instrument panel automatically alerts to malfunctions in major components

FEATURES

Main material: iron ABS

Motor: 600W

Battery: 48V20Ah, lead-acid battery

Max speed: 25km/h

Brakes: Magnetic brake

Suspension: indepedent

Tyre: F 3.00-8 R 3.00-10

Max range: 40-60km

Load capacity: 150kg

Charging time: 6-10 hours(depends on battery andcharger type)

Vehicle size:170*70*129 cm

Packing size: 173*75*110cm

Net weight:136 KGS

Gross weight:166 KGS

NOTE

a. Due to lighting, screens, and production, product colors may vary slightly from what you see online

b. Please allow a 2-4 cm size variation due to manual measurement or manufacturing differences
